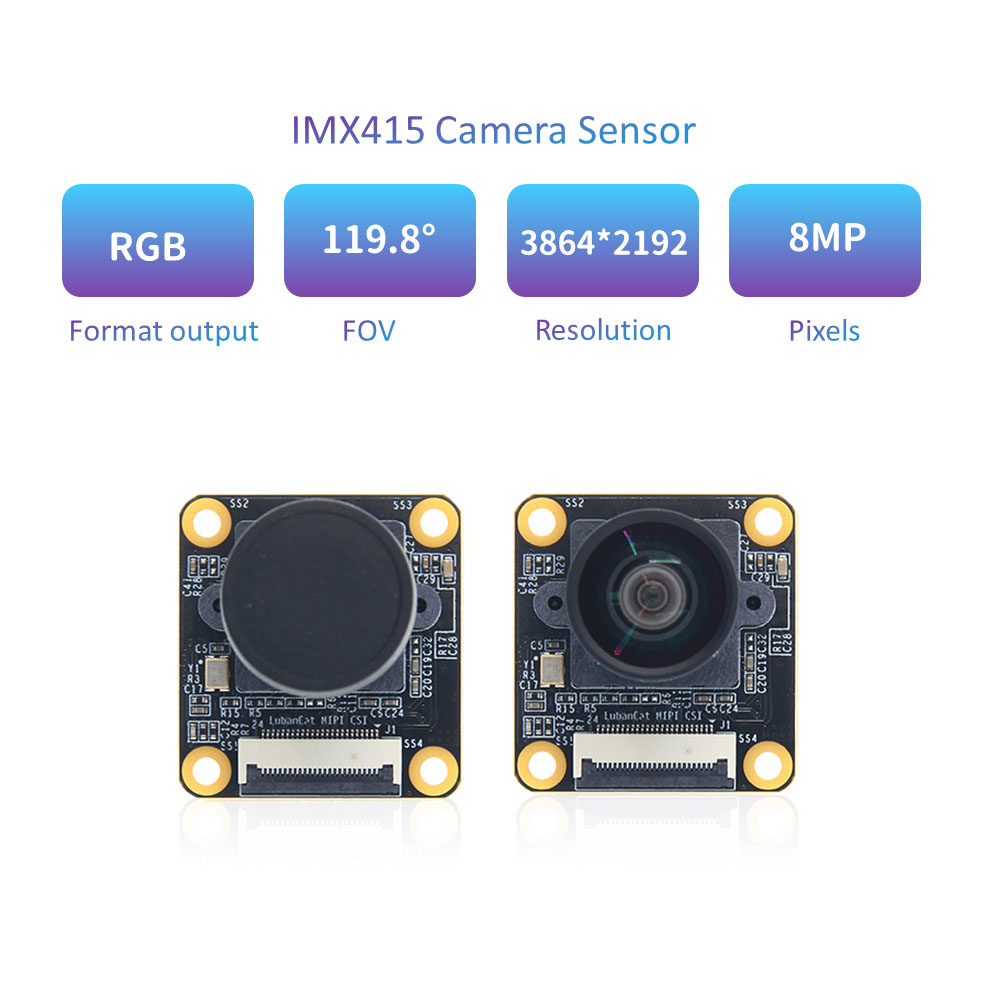

Sony CMOS IMX415 Modul de cameră

This Sony CMOS IMX415 Camera Module uses the IMX415-AAOR-CCMOS active pixel solid-state image sensor.

The camera module is 31*29mm in size, small in size, and has a low operating voltage.

It uses R, G, and B primary color mosaic filters to achieve high sensitivity, low dark current, and no coating. The 119.8° lens viewing angle is matched with a 1/2.8-inch Sony 4K sensor, and the wide field of view can see wider and more detailed, and can be applied to surveillance cameras, FA cameras, industrial cameras and other fields

Sony CMOS IMX415 Camera Module Parameters

 IMX415800W pixel camera module

 Sensor :IMX415 800W pixel, color

 Circuit design :5V power supply, on-board 37.125M active crystal interface : MIPICSI*4Lanes

 Lens:

Lens:1/2.8

Spacing: 2.02mm;

Aperture: 2.5;

Field of view :119.8°

Distortion: <7.1%

 Output format :10-bit/12-bit RGBRAW

 Max frame rate :3864*2192:30fps

 Auto focus: Not supported

 Operating temperature -30-85° C

 Module size: 31mm high * 29mm wide
